AC & DC Power Packs
In association with Tecfluid Srl, Pro-E-Con Ltd offers a standard range of AC and DC hydraulic power packs to suit any application. This range incorporates flexible circuitry using modular and custom designed components, allowing tailoring of each assembly to meet system requirements.
Alongside this range Pro-E-Con Ltd has designed and developed the Si90 micro power pack, available in both uni-directional and reversible configurations. These units are ideal for low flow applications where envelope size and weight are of optimum importance.
Application specific PU30 industrial power packs are also available.

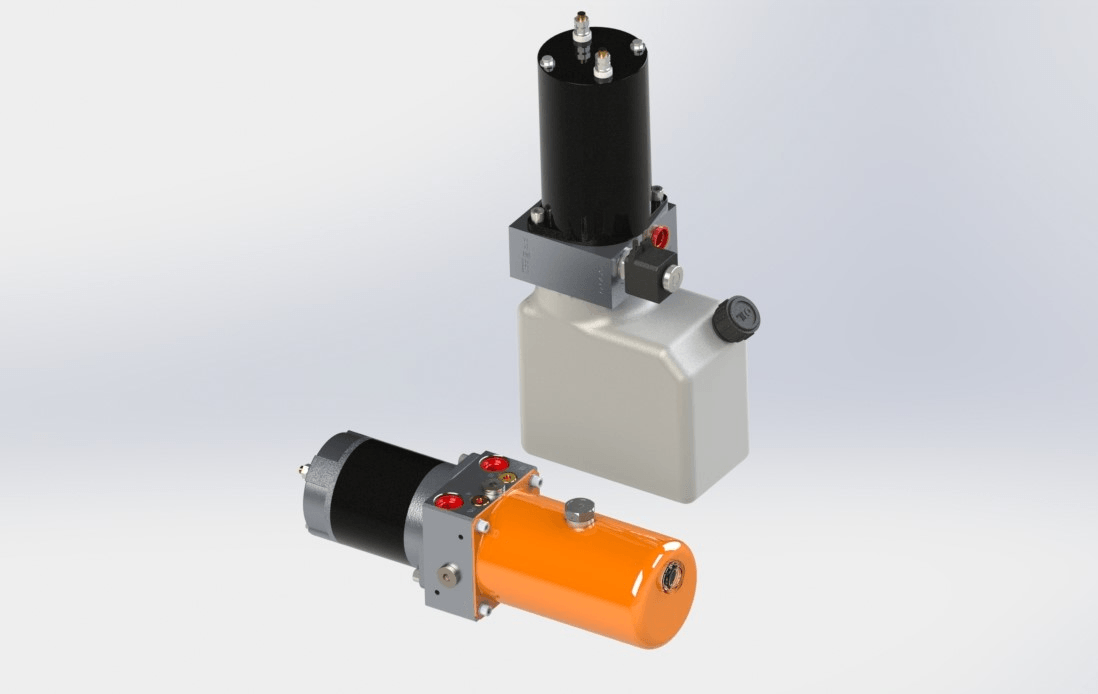

Si90 Power Packs
- Si90U - Uni-directional Micro pack
- Si90R - Reversible Micro pack
- Voltage: 12Vdc, 24Vdc, 230Vac
- Power: 150W to 800W
- Tank Sizes: 0.2L – 1.5L
- Max pressure: 200 Bar
- Dimensions: 90mm2 centre manifold

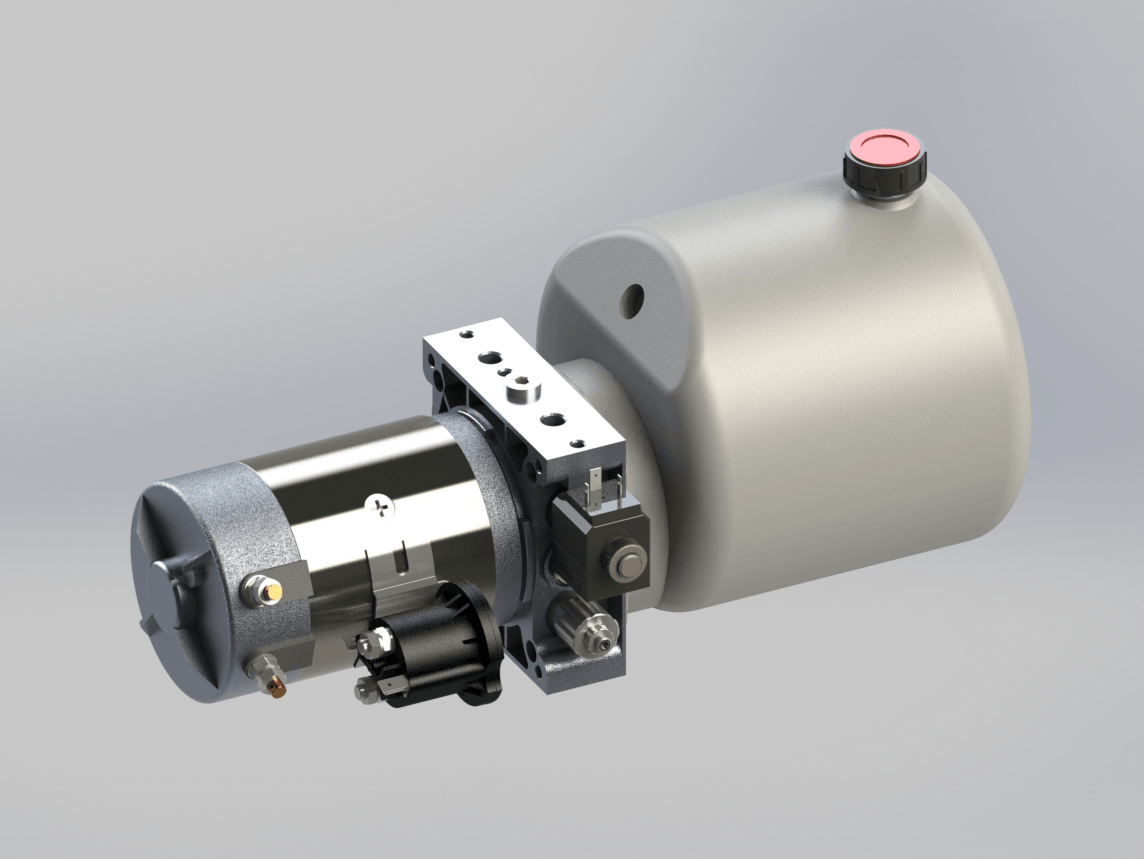

PU10 Mini Power Packs
- Voltage: 12Vdc, 24Vdc, 230Vac & 400Vac
- Power: 500W to 5.5kW
- Pump Sizes: 1.0cc/rev – 9.8cc/rev
- Tank Sizes: 1.0L - 90L
- Pressures up to 320Bar
- Dimensions: 135mm*137mm centre manifold

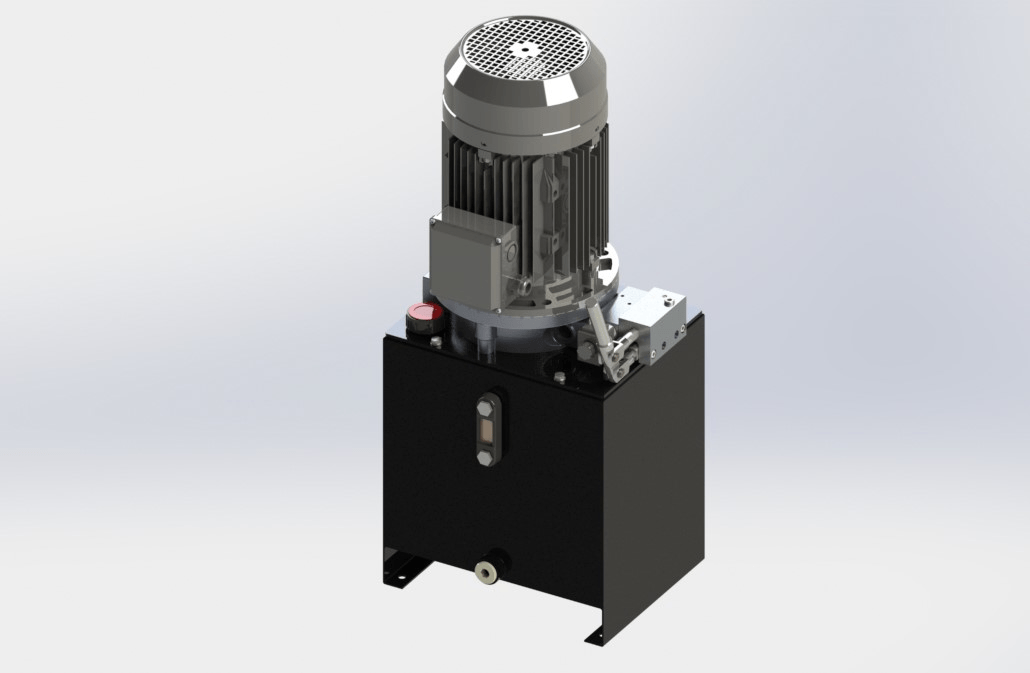

PU20 Modular Industrial Power Packs
- Voltage: 400Vac
- Power: 2.2kW to 9.2kW
- Pump Sizes: 4.5cc/rev - 36.0cc/rev
- Tank Sizes: 20L - 180L
- Pressures up to 250Bar

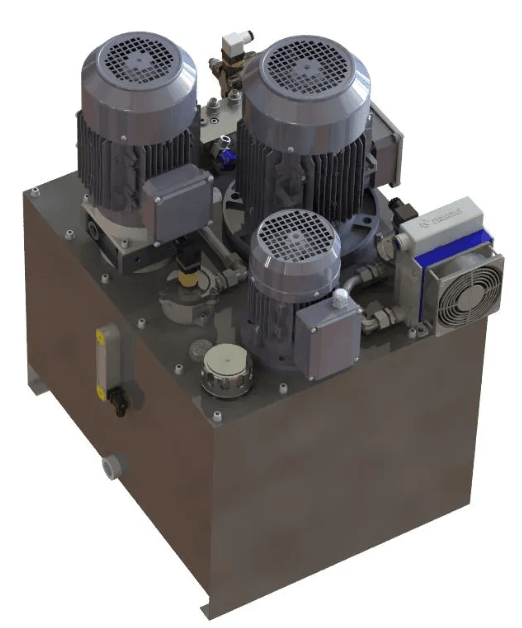

PU30 Industrial Power Pack
- Voltage: 415Vac
- Power: 0.75kW to 22kW
- Pump Sizes: 4.5cc/rev - 100.0cc/rev
- Tank Sizes: 20L - 450L
- Pressures up to 420Bar
